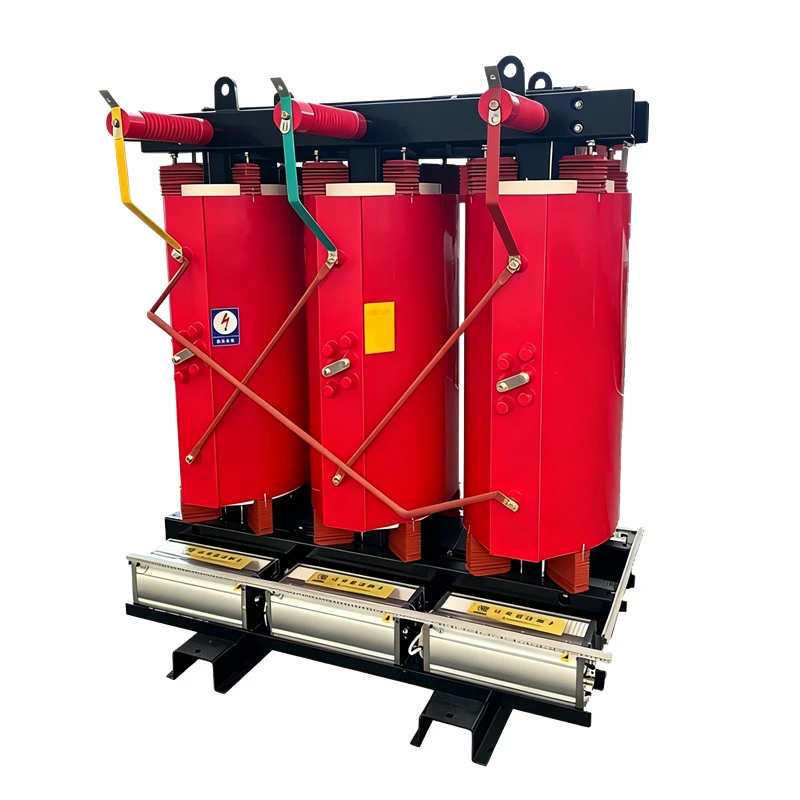

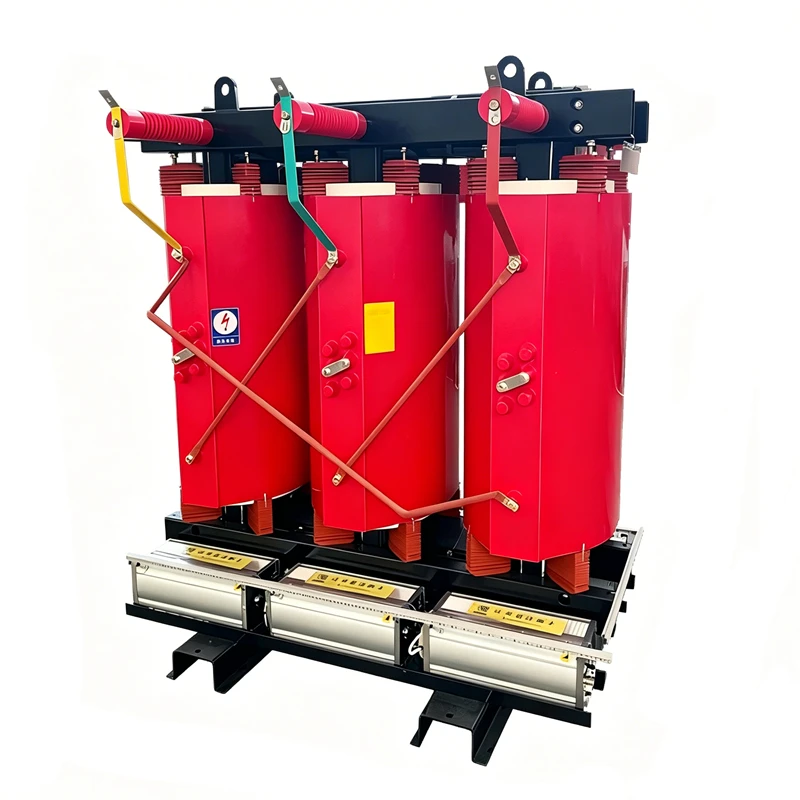

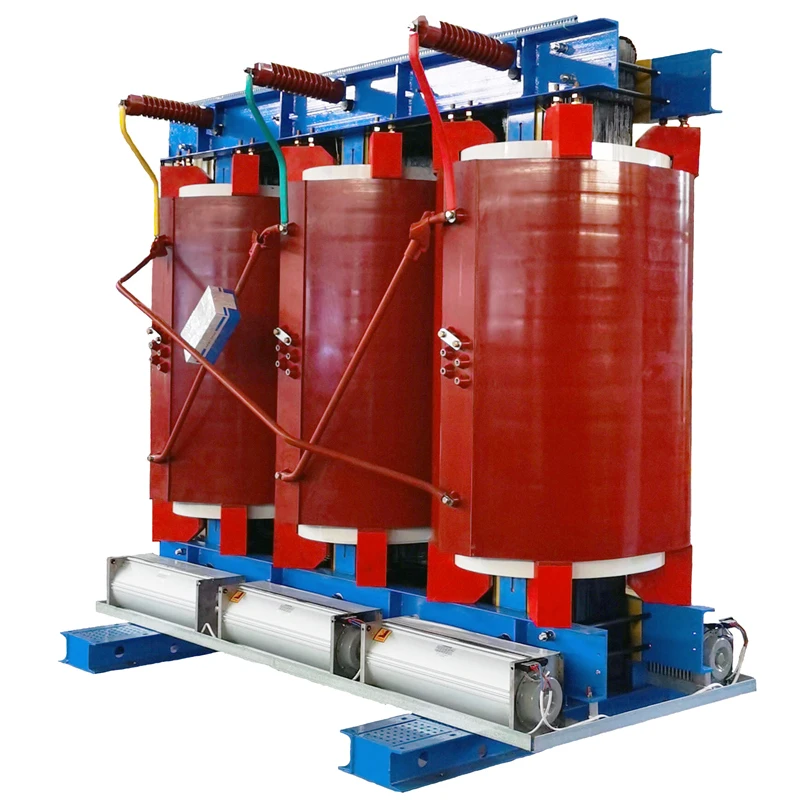

Dry Type Transformer 10KV to 400V 3 Phase IEC/IEEE Standard Customizable

The 3-phase 10KV to 400V dry type transformer is a high-performance cast resin power distribution solution designed for modern safe power supply environments. Different from traditional oil-filled transformers, this dry type transformer adopts fully encapsulated epoxy resin casting technology, featuring fireproof, explosion-proof, pollution-free and maintenance-free performance. It is the most popular power transformation equipment for indoor, commercial, industrial and densely populated power supply projects.

Inquire Now Next Product

Technical Specifications

Below are standard technical data of our 10KV/0.4KV three-phase dry type transformer.

Dry Type Transformer	Rated Power	HV&LV	Vector Group	Voltage Regulation	No-load Loss	Load Loss	Short-circuit Impedance
SCB10/11(only for replacement)	30KVA 50KVA 63KVA 80KVA 100kva 125kva 160kva 200kva 250 KVA 315KVA 400KVA 500 KVA 630KVA 800KVA 1000 KVA 1250KVA 1600KVA 2000KVA 2500KVA	6KV 6.3KV 10KV TO 400V	Yyn0 Dyn11	±5% or ±2*2.5%	≥150-2880w	≥710-17170	30-630kva:4% 630-2500kva:6-8%
SCB12/13					≤150-2800w	≤710-17170
SCB14					≤130-2450	≤640-15445
SCB18					≤105-2080	≤640-15445
SCB20					10-15% lower than SCB18

Parameter	Specification / Details
Rated Voltage	High Voltage: 10 kV Low Voltage: 400 V (0.4 kV)
Phase Number	3 Phase
Rated Frequency	50 Hz / 60 Hz (Customizable)
Capacity Range	30 kVA ~ 3,000 kVA (Customizable)
Tapping Range	±5%, ±2×2.5%, +5%/-10% (Optional)
Insulation Material	High-purity Epoxy Resin Casting
Protection Class (IP Code)	IP20 / IP54 / IP65 (Optional)
Efficiency Level	Grade 1 / Grade 2 (High Energy Saving)
No-load Loss	15%–25% lower than traditional ordinary dry-type transformers
Working Temperature Rise	≤ 80 K (stable long-term operation)
Noise Level	≤ 55 dB at rated operation (ultra-low noise)
Service Life	More than 25 years under normal operation
Execution Standard	IEC 60076, IEEE C57.12, GB/T 1094

Product Advantages

This 10KV-400V dry type cast resin transformer solves multiple pain points of industrial and commercial power distribution projects, with obvious competitive advantages compared with traditional transformer products:

Fireproof & Explosion-proof, Ultra-high Safety

Maintenance-Free & Low Operation Cost

Super Energy Saving & Low Loss

Low Noise & Environmentally Friendly

Strong Adaptability & Customization

Compact Structure & Easy Installation

Production Process

We adopt standardized and refined production process for all dry type transformers, strictly controlling every production link to ensure product stability and consistency, providing high-quality equipment for global buyers:

Strict Raw Material Screening

Precision Core Cutting & Stacking

High-precision Winding Process

Vacuum Epoxy Resin Casting

High-temperature Curing & Shaping

Finishing & Accessory Assembly

Testing Process

To guarantee reliable product quality, all our dry type transformers undergo full-item professional testing before delivery, complying with IEC and IEEE international testing standards:

Raw Material Incoming Inspection

Winding DC Resistance Test

Insulation Performance Test

No-load & Load Loss Test

Temperature Rise & Noise Test

Partial Discharge Test

Final Overall Inspection

FAQ

Q: What is the biggest advantage of dry type transformer compared with oil immersed transformer?

Dry type transformer adopts epoxy resin fully sealed structure, no oil leakage, no fire hazard, completely maintenance-free, safer and more environmentally friendly. It is more suitable for indoor and densely populated scenarios, while oil immersed transformers are more suitable for outdoor remote areas.

Q: Can you customize 50Hz/60Hz and special voltage parameters?

Yes. We support full customization of frequency (50Hz/60Hz), tapping range, protection grade, capacity and special voltage ratio to meet different national grid standards.

Q: What is the energy efficiency grade of your dry type transformers?

Our products support Grade 1 and Grade 2 high energy efficiency, with lower operation loss and longer service life, meeting global energy-saving and environmental protection requirements.

Q: How long is the product warranty and service life?

We provide 2-year free warranty and lifelong technical support. The normal service life of the transformer can reach more than 25 years.

Q: Is your product compliant with international standards for export?

All products comply with IEC 60076, IEEE and GB international standards, and can provide complete test reports and certification documents to support customs clearance and project bidding.

Q: What protection grades are available for selection?

Standard IP20, optional IP54 and IP65. Higher protection grade can effectively prevent dust, rain and foreign matter invasion, suitable for harsh outdoor environments.

Q: What is your delivery time?

Standard models take 20-30 working days. For urgent orders, we can arrange priority production to shorten the delivery cycle.
