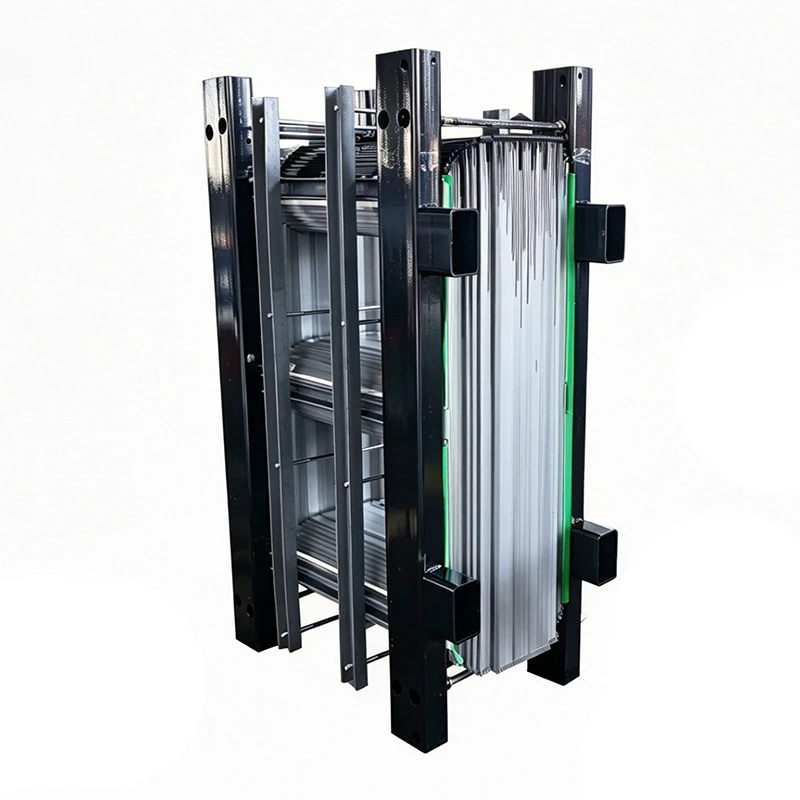

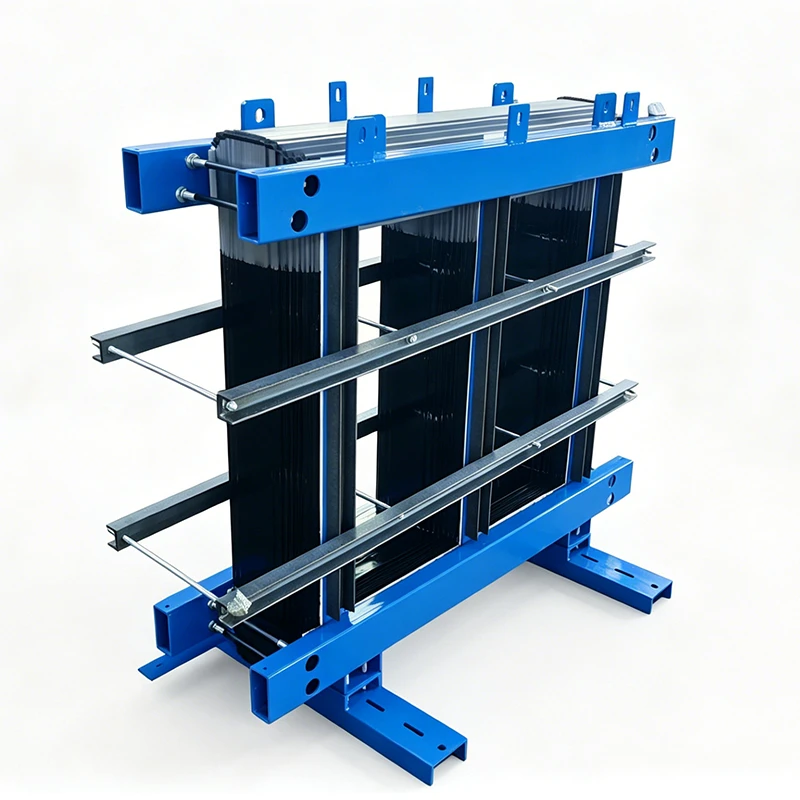

The transformer silicon steel sheet core is the core magnetic conduction component of power transformers, distribution transformers, and electrical control transformers, professionally manufactured with high-quality grain-oriented silicon steel materials. As a standard mainstream product in the electrical industry, this iron core strictly complies with international IEC industry standards and global power equipment manufacturing specifications. It is designed to solve the core pain points of transformer operation such as high no-load loss, large noise, and unstable magnetic conduction efficiency for purchasers and transformer manufacturers. Adopting precise stamping and laminated molding technology, our standard silicon steel sheet core features uniform lamination, tight fitting, and excellent magnetic permeability. It can effectively improve the energy conversion efficiency of transformers, reduce long-term operation energy consumption, and ensure the stable and safe operation of power equipment. All standard products are produced with standardized processes, with complete specifications, stable quality, and high cost performance, which can meet the mass procurement and conventional matching needs of most power equipment manufacturers, engineering contractors, and electrical supporting enterprises.
Technical Parameters
|
Parameter Item |
Technical Specification |
|
Raw Material Grade |
Grain-oriented electrical silicon steel (conventional standard grade) |
|
Sheet Thickness |
0.23mm / 0.27mm / 0.30mm / 0.35mm (optional standard thickness) |
|
Lamination Factor |
≥97% (standard lamination density) |
|
No-load Loss (P1.5/50) |
≤1.25W/kg (conforming to IEC standard) |
|
Magnetic Induction Intensity |
≥1.75T (stable magnetic conductivity) |
|
Working Frequency |
50Hz / 60Hz (universal for global power grid) |
|
Insulation Grade |
Class A / Class F (optional) |
|
Operating Temperature Range |
-20℃ ~ 120℃ |
|
Structural Form |
EI type / UI type / laminated integral type (standard customizable) |
|
Size Tolerance |
±0.02mm (precision stamping standard) |
Product Advantages
Ultra-low No-load Loss & High Magnetic Efficiency
Standardized Size & Strong Compatibility
Low Operating Noise & Stable Performance
High Mechanical Strength & Durability
Cost-effective Standardized Mass Supply
FAQ
Q: Are your silicon steel sheet cores standard universal models?
All our products are international standard regular models, fully compliant with IEC and global power equipment manufacturing standards, with complete specifications. They are universally compatible with most conventional transformers on the market and support direct assembly and use without secondary processing.
Q: Can you provide customized specifications besides standard products?
On the basis of standard products, we support non-standard size customization, special thickness customization and performance parameter fine-tuning. We can provide personalized processing solutions according to customers' transformer design drawings.
Q: What is the delivery cycle for bulk procurement of standard products?
We have a large inventory of conventional standard silicon steel sheet cores. For spot orders, we can deliver within 3-7 working days; for bulk batch orders, the delivery cycle is 10-15 working days, which can meet customers' mass production and procurement needs.
Q: Do your products have quality certification and test reports?
All products comply with international industry standards, and can provide factory test reports, performance parameter sheets and relevant qualification certificates. Each batch of products has complete quality traceability data to support customer inspection and project acceptance.
Q: What are the advantages of your standard iron cores compared with peers?
Our standard products adopt automated streamlined production with stricter tolerance control and more stable batch consistency. With lower no-load loss and lower operating noise, the products have higher cost performance. Meanwhile, we provide one-stop supporting services including stable supply, fast delivery and perfect after-sales service.
